| Models | ESPG30000-25600sport |
| AC output power | 30000VA/30000W |
| Peak power(ms) | 60000VA |
| AC input | |
| Input voltage | 90-280Vac/170-280Vac±2% |
| Input frequency | 47-65Hz |
| EPS ac output | |
| Output phase | L+N+PE |
| Output voltage | 220V/230Vac±5% |
| Output frequency | 50/60Hz±1%（Inverter mode） |
| Output waveform | Pure sine wave |
| Output power | 30000W |
| PV charging&AC charging | |
| Max pv input power | 24000W |
| Max pv voltage(voc) | 145Vdc |
| Optimal tracking voltage(vmp) | 65-115Vdc |
| Max pv charging current | 480A |
| Max ac charging current | 320A |
| Battery cluster | |
| Battery type | LiFePO4 |
| Battery voltage | 51.2V |
| Battery capacity | 25600WH |
| Other information | |
| Conversion time | ≦10Ms |
| Efficiency | ＞92% |
| Protect Complete | protection functions |
| Communication | RS485/WIFI/GPRS (Optional） |
| Installation mode | Floor stacked |
| Ambient Temperature | -10℃-50℃ |
| Storage temperature | -25℃-60℃ |

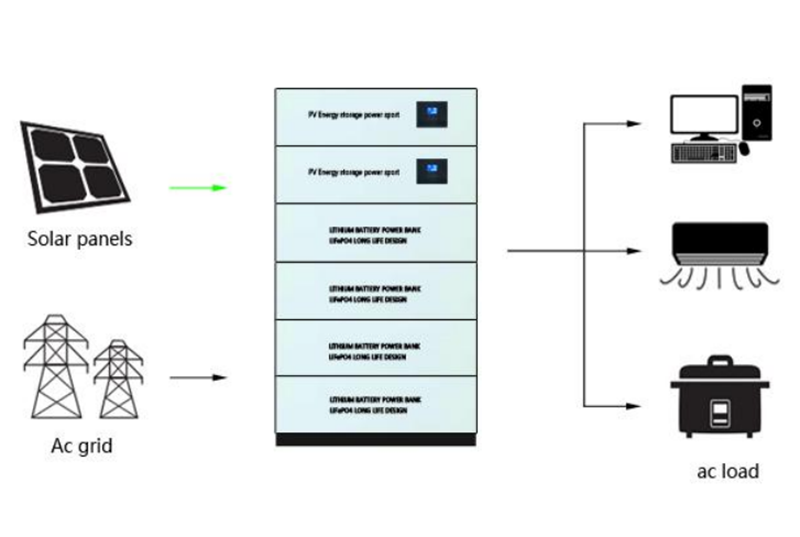

Off-grid system Connection diagram
 |

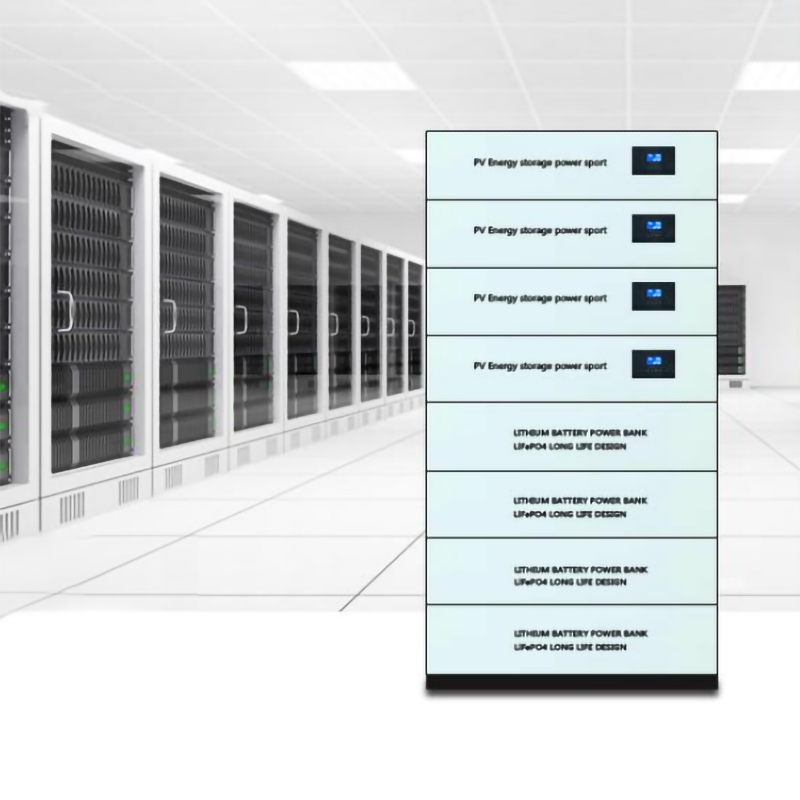

Free stack of battery clusters |
| Control module Stacking | |
| 30000W output power | |
| Pure sine wave | |
| Lightning surge protection | |
| Integrated power supply system |
ESP SYSTEM Features
- Modular design, built-in efficient MPPT, control modules and battery modules canbe freely combined and stacked, easy to install and maintain.
