| Models | ESP1000-1200 | ESP1000-1500 | ESP1000-2048 |
| AC output power | 1000VA/1000W | 1000VA/1000W | 1000VA/1000W |
| Peak power(ms) | 2500VA | 2500VA | 2500VA |
| AC input | |||
| Input voltage | 145-265Vac±5% | ||
| Input frequency | 45-65Hz | ||
| EPS ac output | |||
| Output phase | L+N+PE | ||
| Output voltage | 220V/230Vac±5% | ||
| Output frequency | 50/60Hz±1%（Inverter mode） | ||
| Output waveform | Pure sine wave | ||
| Output power | 1000W | ||
| PV charging&AC charging | |||
| Max pv input power | 350W/750W | ||
| Max pv voltage(voc) | 55Vdc | ||
| Optimal tracking voltage(vmp) | 18-30V/36-45Vdc | ||
| Max pv charging current | 30A | ||
| Max ac charging current | 15A | ||
| Battery cluster | |||
| Battery type GEL | Battery/LiFePO4 | ||
| Battery voltage | 12V/12.8V/25.6V | ||
| Battery capacity | 1200WH-2048WH | ||
| Other information | |||
| 5VUSB Max | 24W 5VUSB*2 QC3.0 | ||
| 12VDC Optional | |||
| Conversion time | ≦4Ms | ||
| Size(mm) | 480*260*490mm | ||
| Communication | RS485/WIFI/GPRS (Optional） | ||
| Installation mode | floor mounted | ||
| Ambient Temperature | -10℃/-50℃ | ||

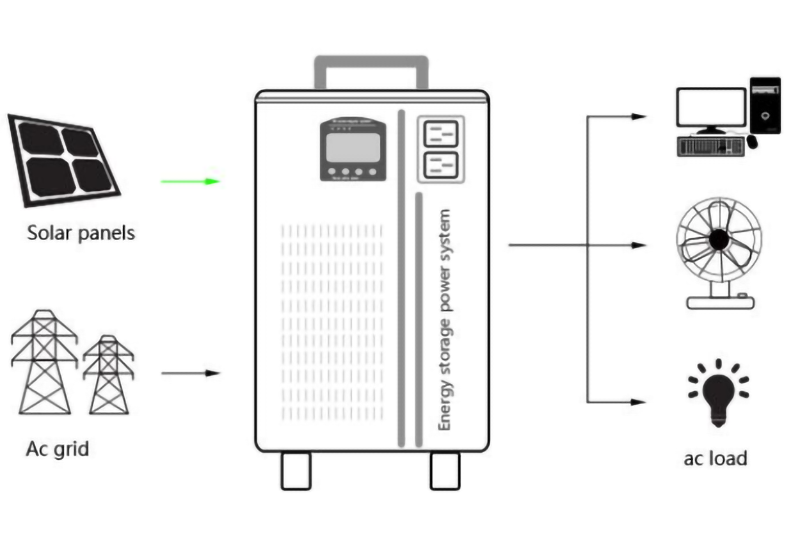

Off-grid system Connection diagram
 |
Built-in battery |
| Power frequency pure sine wave | |
| 1000W output power | |
| Solar inverter/ups | |
| Integrated power supply system |

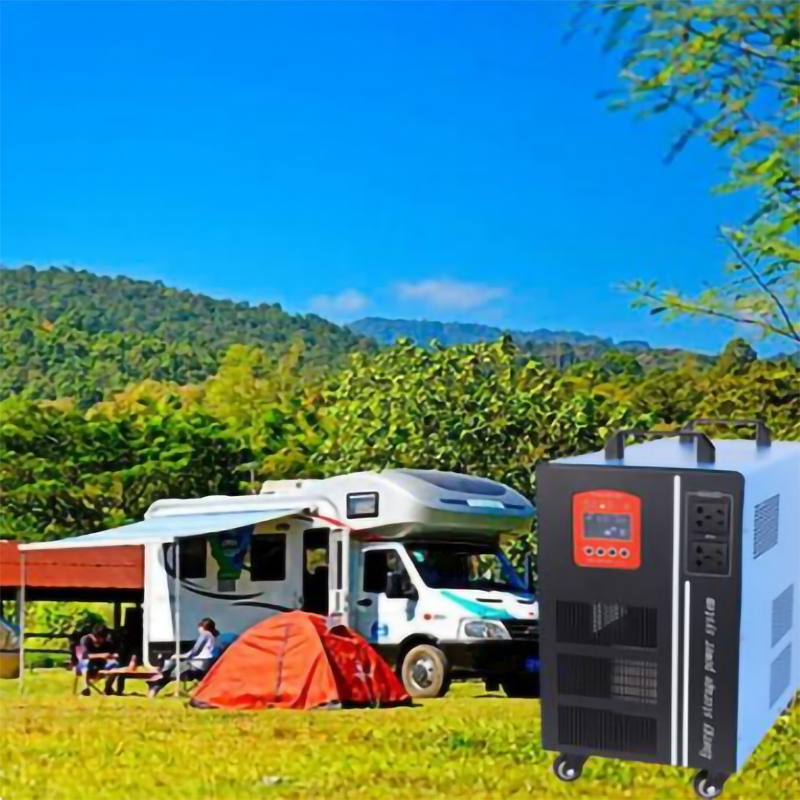

ESP SYSTEM Application
- ●Household power supply system
- ●Outdoor work
- ●Touring car power
- ●Outdoor live broadcast
- ●Communication base station
