| Models | ESP2000-2400 | ESP2000-2560 | ESP2000-3840 |
| AC output power | 2000VA/2000W | 2000VA/2000W | 2000VA/2000W |
| Peak power(ms) | 5000VA | 5000VA | 5000VA |
| AC input | |||
| Input voltage | 165-265Vac±5% | ||
| Input frequency | 45-65Hz | ||
| EPS ac output | |||
| Output phase | L+N+PE | ||
| Output voltage | 220V/230Vac±5% | ||
| Output frequency | 50/60Hz±1%（Inverter mode） | ||
| Output waveform | Pure sine wave | ||
| Output power | 2000W | ||
| PV charging&AC charging | |||
| Max pv input power | 1100W | ||
| Max pv voltage(voc) | 55Vdc | ||
| Optimal tracking voltage(vmp) | 30-45Vdc | ||
| Max pv charging current | 40A | ||
| Max ac charging current | 15A | ||
|
Battery cluster
|
|||
|
Battery type GEL Battery
|
LiFePO4 | LiFePO4 | LiFePO4 |
|
Battery voltage
|
24V | 25.6V | 25.6V |
|
Battery capacity
|
2400WH | 2560WH | 3840WH |
|
Other information
|
|||
|
5VUSB Max
|
24W 5VUSB*3 QC3.0 | ||
|
12VDC
|
5521-12V3A*2 | ||
|
Conversion time
|
≦4Ms | ||
|
Size(mm)
|
540*365*570mm | ||
|
Communication
|
RS485/WIFI/GPRS (Optional） | ||
|
Installation mode
|
floor mounted | ||
|
Ambient Temperature
|
-10℃-50℃ | ||

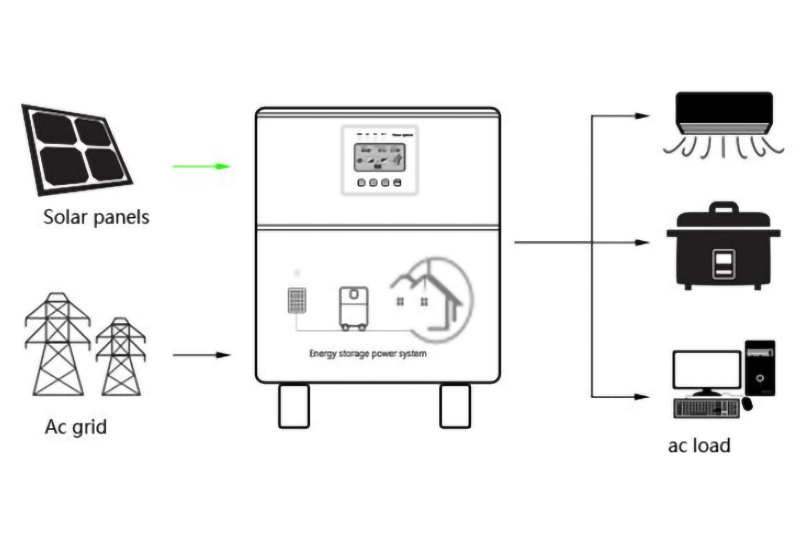

Off-grid system Connection diagram
 |
Built-in battery |
| Power frequency pure sine wave | |
| 2000W output power | |
| Solar inverter/ups | |
| Lightning surge protection | |
| Integrated power supply system |
ESP SYSTEM Application
- ●Household power supply system
- ●Electricity for fishing rafts
- ●Touring car power
- ●Outdoor live broadcast
- ●1P Air conditioner
