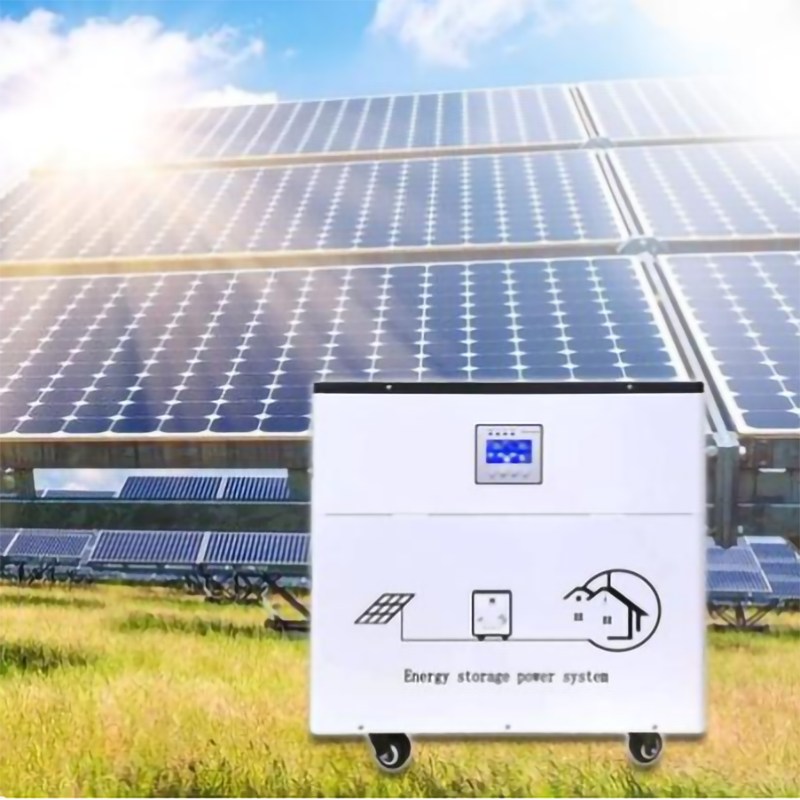

| Models | ESP3000-3600 | ESP3000-4800 | ESP3000-5120 |
| AC output power | 3000VA/3000W | 3000VA/3000W | 3000VA/3000W |
| Peak power(ms) | 8000VA | 8000VA | 8000VA |
| AC input | |||
| Input voltage | 165-265Vac±5% | ||
| Input frequency | 45-65Hz | ||
| EPS ac output | |||
| Output phase | L+N+PE | ||
| Output voltage | 220V/230Vac±5% | ||
| Output frequency | 50/60Hz±1%（Inverter mode） | ||
| Output waveform | Pure sine wave | ||
| Output power | 3000W | ||
| PV charging&AC charging | |||
| Max pv input power | 3000W | 3000W | 3200W |
| Max pv voltage(voc) | 100Vdc | 100Vdc | 150Vdc |
| Optimal tracking voltage(vmp) | 65-72Vdc | 65-72Vdc | 72-110Vdc |
| Max pv charging current | 60A | ||
| Max ac charging current | 15A | ||
| Battery cluster | |||
| Battery type | GEL Battery | GEL Battery | LiFePO4 |
| Battery voltage | 24V | 24V | 51.2V |
| Battery capacity | 3600WH | 4800WH | 5120WH |
| Other information | |||
| 5VUSB Max | 24W 5VUSB*3 QC3.0 | ||
| 12VDC | 5521-12V3A*2 | ||
| Conversion time | ≦4Ms | ||
| Size(mm) | 610*550*650mm | ||
| Communication | RS485/WIFI/GPRS (Optional） | ||
| Installation mode | floor mounted | ||
| Ambient Temperature | -10℃-50℃ | ||
Off-grid system Connection diagram
 |
Built-in battery |
| Power frequency pure sine wave | |
| 3000W output power | |
| Solar inverter/ups | |
| Lightning surge protection | |
| Integrated power supply system |
ESP SYSTEM Application
- ●Household power supply system
- ●Electricity for fishing rafts
- ●Touring car power
- ●Outdoor live broadcast
- ●1.5P Air conditioner
