| Models | ESPG5000-5120 | ESPG5000-10240 |
| AC output power | 5000VA/5000W | 5000VA/5000W |
| Peak power(ms) | 10000VA | 10000VA |
| AC input | ||
| Input voltage | 90-280Vac/170-280Vac±2% | |
| Input frequency |
47-65Hz
|
|
| EPS ac output | ||
| Output phase |
L+N+PE
|
|
| Output voltage |
220V/230Vac±5%
|
|
| Output frequency |
50/60Hz±1%（Inverter mode）
|
|
| Output waveform |
Pure sine wave
|
|
| Output power |
5000W
|
|
| PV charging&AC charging | ||
| Max pv input power | 4200W | 4200W |
| Max pv voltage(voc) | 145Vdc | 145Vdc |
| Optimal tracking voltage(vmp) | 65-115Vdc | 65-115Vdc |
| Max pv charging current | 80A | |
| Max ac charging current | 60A | |
| Battery cluster | ||
| Battery type | LiFePO4 | LiFePO4 |
| Battery voltage | 51.2V | 51.2V |
| Battery capacity | 5120WH | 10240WH |
| Other information | ||
| 5VUSB | Max 24W 5VUSB*3 QC3.0（Optional） | |
| 12VDC | 5521-12V3A*2 （Optional） | |
| Conversion time | ≦10Ms | |
| Size(mm) | 610*550*650mm | 610*550*1010mm |
| Communication | RS485/WIFI/GPRS (Optional） | |
| Installation mode | floor mounted | |
| Ambient Temperature | -10℃-50℃ | |

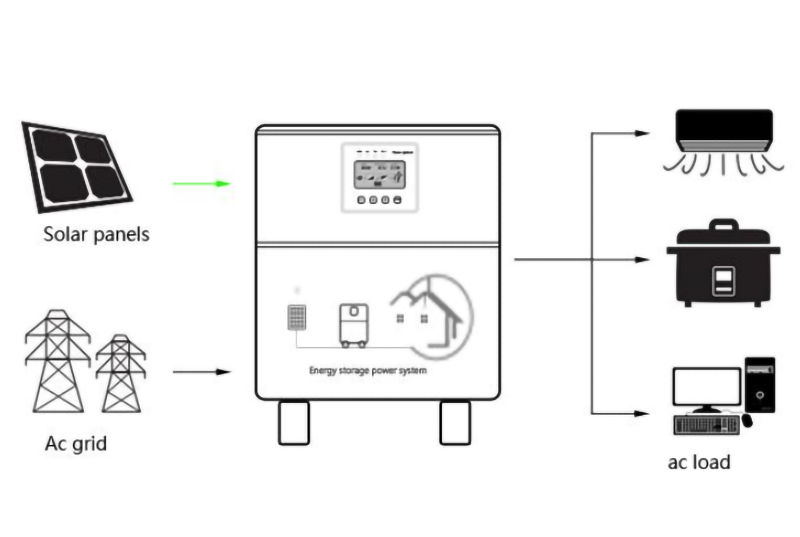

Off-grid system Connection diagram
 |
Built-in LiFePO4 |
| Pure sine wave | |
| 5000W output power | |
| Solar inverter/ups | |
| Lightning surge protection | |
| Integrated power supply system |
ESP SYSTEM Application
- ●Household power supply system
- ●Electricity for fishing rafts
- ●Touring car power
- ●Area without electricity
- ●Monitoring equipment
