| Models | ESPG20000-20480sport | ESPG20000-25600sport |
| AC output power | 20000VA/20000W | 20000VA/20000W |
| Peak power(ms) | 40000VA | 40000VA |
| AC input | ||
| Input voltage | 90-280Vac/170-280Vac±2% | |
| Input frequency | 47-65Hz | |
| EPS ac output | ||
| Output phase | L+N+PE | |
| Output voltage | 220V/230Vac±5% | |
| Output frequency | 50/60Hz±1%（Inverter mode） | |
| Output waveform | Pure sine wave | |
| Output power | 20000W | |
| PV charging&AC charging | ||
| Max pv input power | 16000W | 16000W |
| Max pv voltage(voc) | 145Vdc | 145Vdc |
| Optimal tracking voltage(vmp) | 65-115Vdc | 65-115Vdc |
| Max pv charging current | 320A | |
| Max ac charging current | 240A | |
| Battery cluster | ||
| Battery type | LiFePO4 | LiFePO4 |
| Battery voltage | 51.2V | 51.2V |
| Battery capacity | 20480WH | 25600WH |
| Other information | ||
| Conversion time | ≦10Ms | |
| Efficiency | ＞92% | |
| Protect Complete | protection functions | |
| Communication | RS485/WIFI/GPRS (Optional） | |
| Installation mode | Floor stacked | |
| Ambient Temperature | -10℃-50℃ | |
| Storage temperature | -25℃-60℃ | |

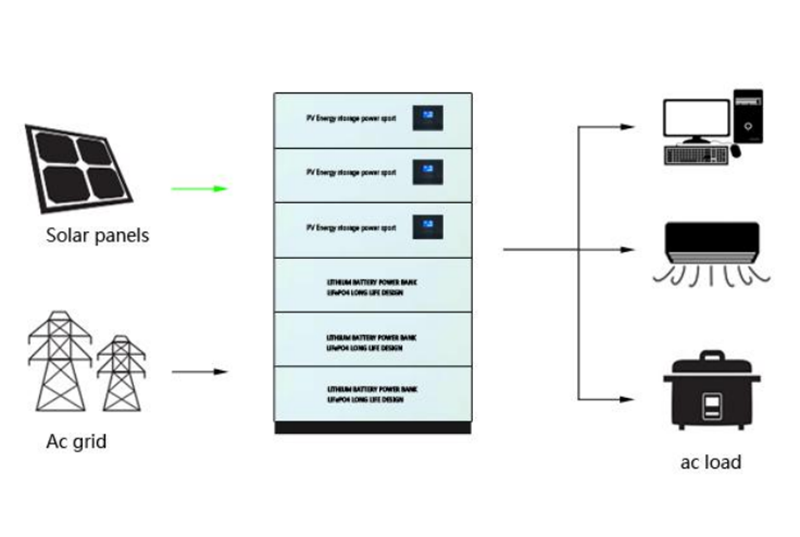

Off-grid system Connection diagram
 |
Free stack of battery clusters |
| Control module Stacking | |
| 20000W output power | |
| Pure sine wave | |
| Lightning surge protection | |
| Integrated power supply system |
ESP SYSTEM Features
- Modular design, built-in efficient MPPT, control modules and battery modules canbe freely combined and stacked, easy to install and maintain.
