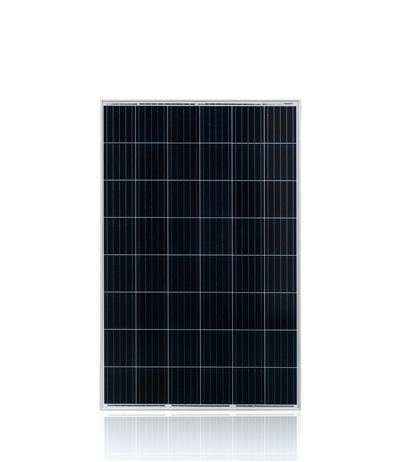

mechanical data：
| Solar cell array ： |
72（6X12） |
| Junction box： |
solar junction box，IP68，3bypass diode |
| Output cable： |
4.0MM²,cable length as standard+mc4 connector |
| Glass： |
single，3.2mm tempered glass |

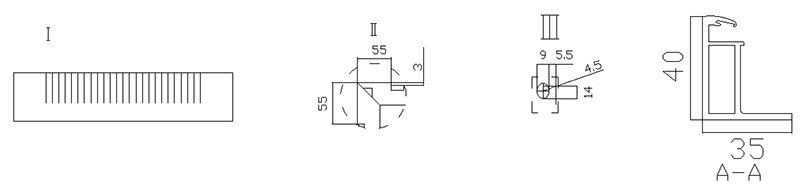

| Frame： |
aluminum dioxide frame |
| Weight： |
22.5KG/23.8KG |
| Dimension： |
1980x 1002 x 40mm |
| Packing： |
1PCS/carton，paper carton |
| Remarks | fully customized acceptable |
Specially designed for the medium and large scale use of power, with high stability and long term lifetime of correct use, which could provide power for a family, or even a committee, for the daily use of power. Together with battery and inverter we could install a small pv plant for a home, and with large quantity of our solar cell modules, we could also install giant pv plant even for an area. It is your smart choice to be with us!
electrical data： STC：AM1.5 1000/m² 25C° peak power testing tolerance ±3%
|
Pmax/W |
380 | 385 | 390 | 395 |
|
Voc/V |
44.3 |
44.3 |
44.3 |
44.3 |
|
Isc/A |
11.24 |
11.4 |
11.52 |
11.67 |
|
Vmp/V |
36.6 |
36.6 |
36.6 |
36.6 |
|
Imp/A |
10.4 |
10.55 |
10.66 |
10.8 |
|
Eff. （% |
19.2 |
19.5 |
19.7 |
20 |
